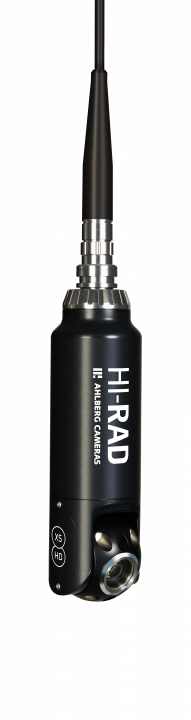

HI-RAD XS
EXTRA SMALL HD PTZ CAMERA
The Hi-Rad XS is a small camera with x10 times optical zoom and built-in pan and tilt functions. Thanks to its small size, it is well suited for irradiated areas with limited space.
Applications
- G1-G2 versions for use underwater only. G3 version for use in air or underwater
- For inspections where superior color rendition and high definition resolution is needed, e.g. fuel inspections and inspection of internal parts
- For inspections of large surfaces where frequent auto re-focusing is required, e.g. at core mapping
- Ideal for use in high radiation areas with limited space
Benefits
- Auto-focus and auto-iris
- Superior color rendition and high definition image
- Powerful LED lighting
- Also available in SD video version
Specifications

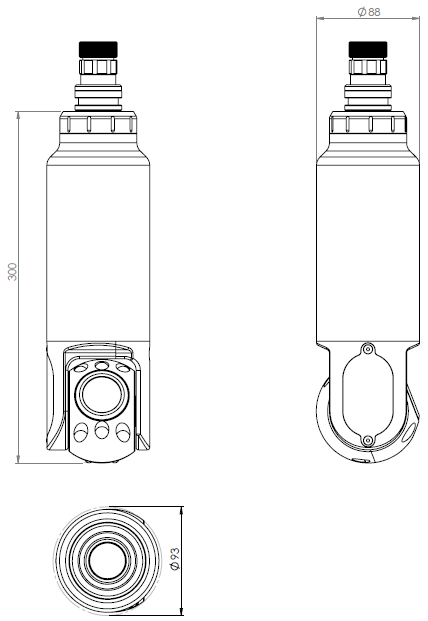

- Diameter
- 88 mm to 93 mm (3.46" to 3.65") depending on tilt angle
- Length
- 345 mm (13.6")
- Weight
- 3.8 kg (8.4 lbs)
- Housing material
- Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316, anodized aluminum
- Radiation tolerance (dose rate)
- 500 Gy/h (50 000 rad/h)
- Radiation tolerance (total dose)
- 1 200 Gy (120 000 rad)
- Maximum temperature
- 50°C (short-term up to 70°C) 122°F (short-term up to 158°F)
- Water tightness
- min 3.5 bar (50 psi), underwater versions
- Ingress protection
- IP68, for the underwater and air version
- Zoom
- x100 (x10 optical, x10 digital)
- Minimum distance to object
- 5 mm (0.20")
- HD horizontal angle of view
- ~5°-50°
- Resolution HD version
- 720p
- Lights
- HI-RAD XS G2: 2x2 LED lights, in total 3600 lumen, 120° beam angle
- Lights
- HI-RAD XS G3: 2x3 LED lights, in total 7200 lumen, 46° beam angle
- Pan angle
- 360° (endless rotation)
- Tilt angle
- ±135° (from the vertical plane)
