AHL-LIGHT 70
LED POND LIGHT
- Weight
- 12.2 kg (26.8 lbs)
- Typical luminous flux
- 87 000lm @5000K, 83 000lm @ 3000K
- Life time
- >50 000 h
- Radiation tolerance (total dose)
- 50 000 Gy (5 000 000 rad)
Nuclear LED Lights
Nuclear LED lighting replaces traditional halogen lights thanks to their massive light output. The LED technology also allows long-term operation and greatly reduced maintenance compared to ordinary nuclear lighting systems.
AHL-LIGHT 50
ROBUST AND RADIATION-TOLERANT LED LIGHT FOR USE IN AIR AND WATER
- Weight
- 9 kg (19.84 lbs), under water 4.5kg (9.92 lbs)
- Typical luminous flux
- 55 000lm (@ 3000K), 58 000lm (@ 5000K)
- Life time
- >50 000 h
- Radiation tolerance (total dose)
- 50 000 Gy (5 000 000 rad)

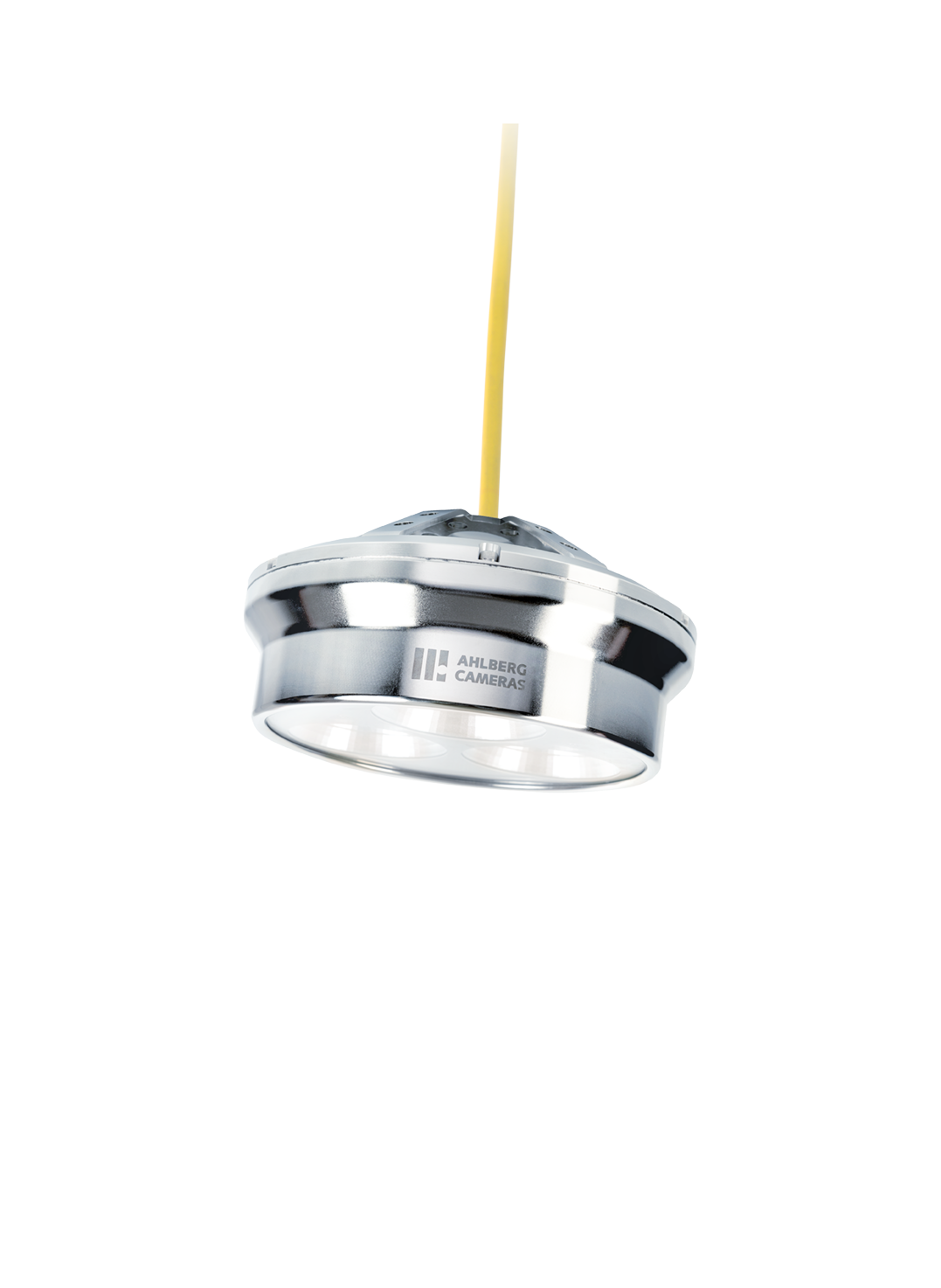

AHL-LIGHT 35
LED WORK LIGHT
- Weight
- 4.5 kg (9.9 lbs)
- Typical luminous flux
- 43 500lm @5000K, 41 500lm @ 3000K
- Life time
- >50 000 h
- Radiation tolerance (total dose)
- 50 000 Gy (5 000 000 rad)

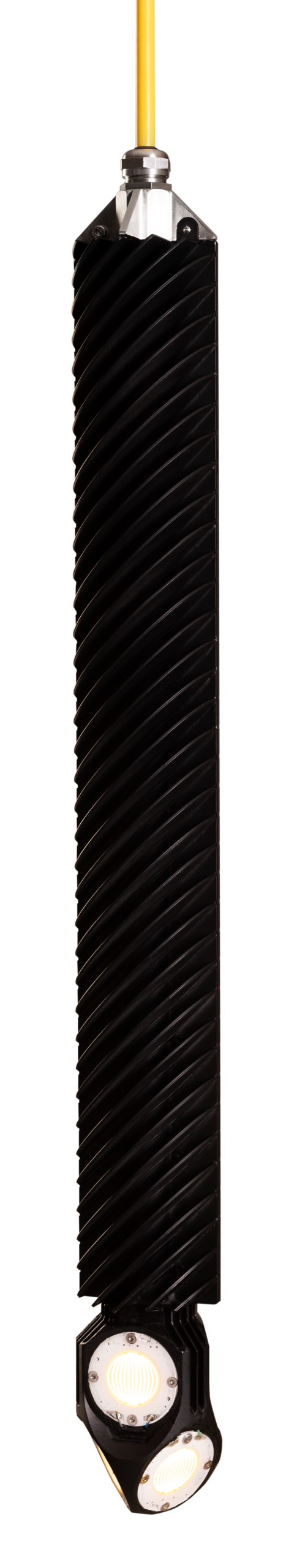

AHL-LIGHT 20
LED DROP LIGHT FOR USE IN AIR AND WATER
- Weight
- 2.8 kg (6.2 lbs), 8.2 kg (18 lbs) with 30.5m light cable
- Typical luminous flux
- 64 000 lumen
- Life time
- Up to 50 000 h
- Radiation tolerance (total dose)
- Up to 10 kGy

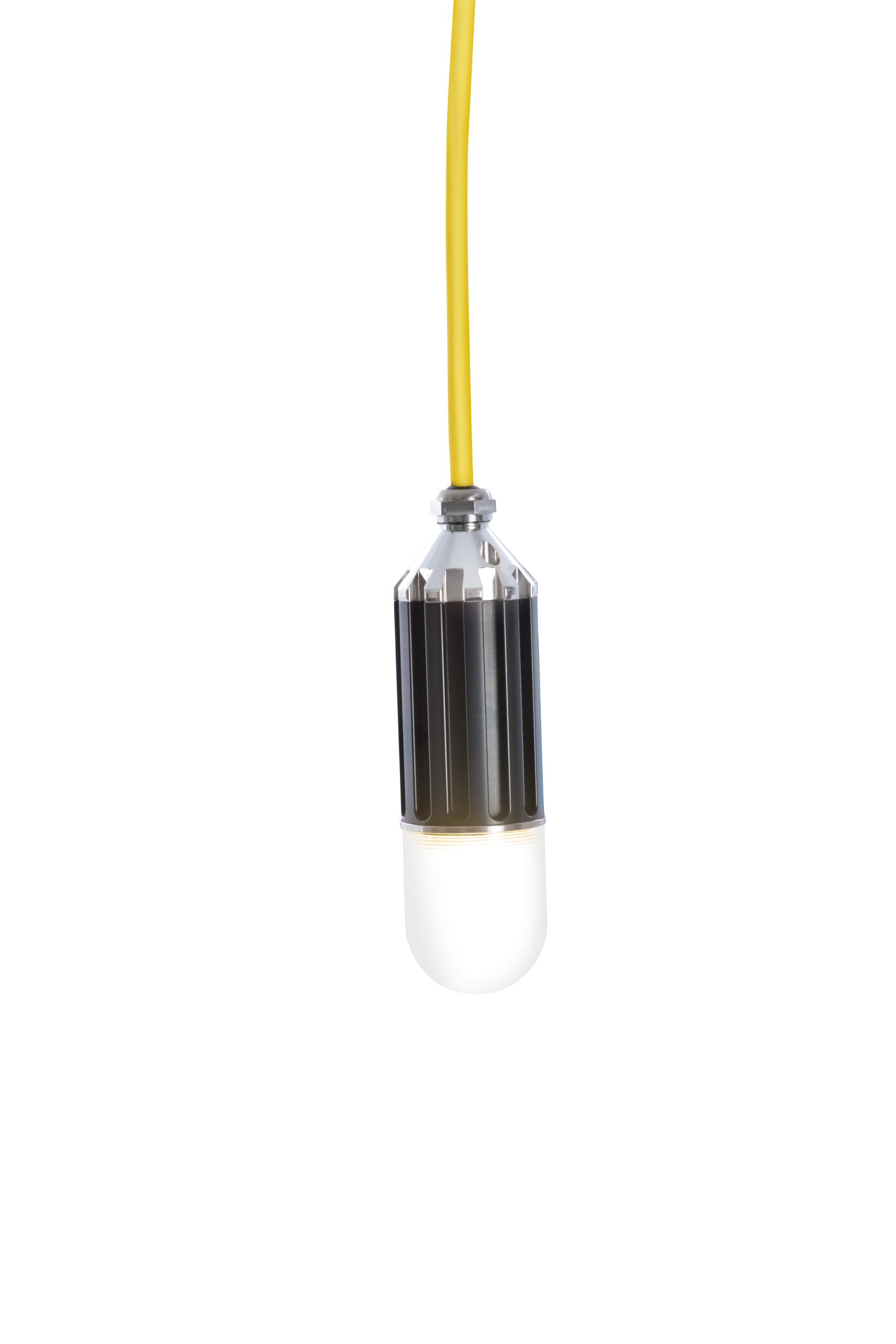

AHL-LIGHT 15
LED DROP LIGHT
- Weight
- 1.2 kg (2.3 lbs)
- Typical luminous flux
- 15 000 lumen
- Life time
- >50 000 h
- Radiation tolerance (total dose)
- 50 000 Gy (5 000 000 rad)

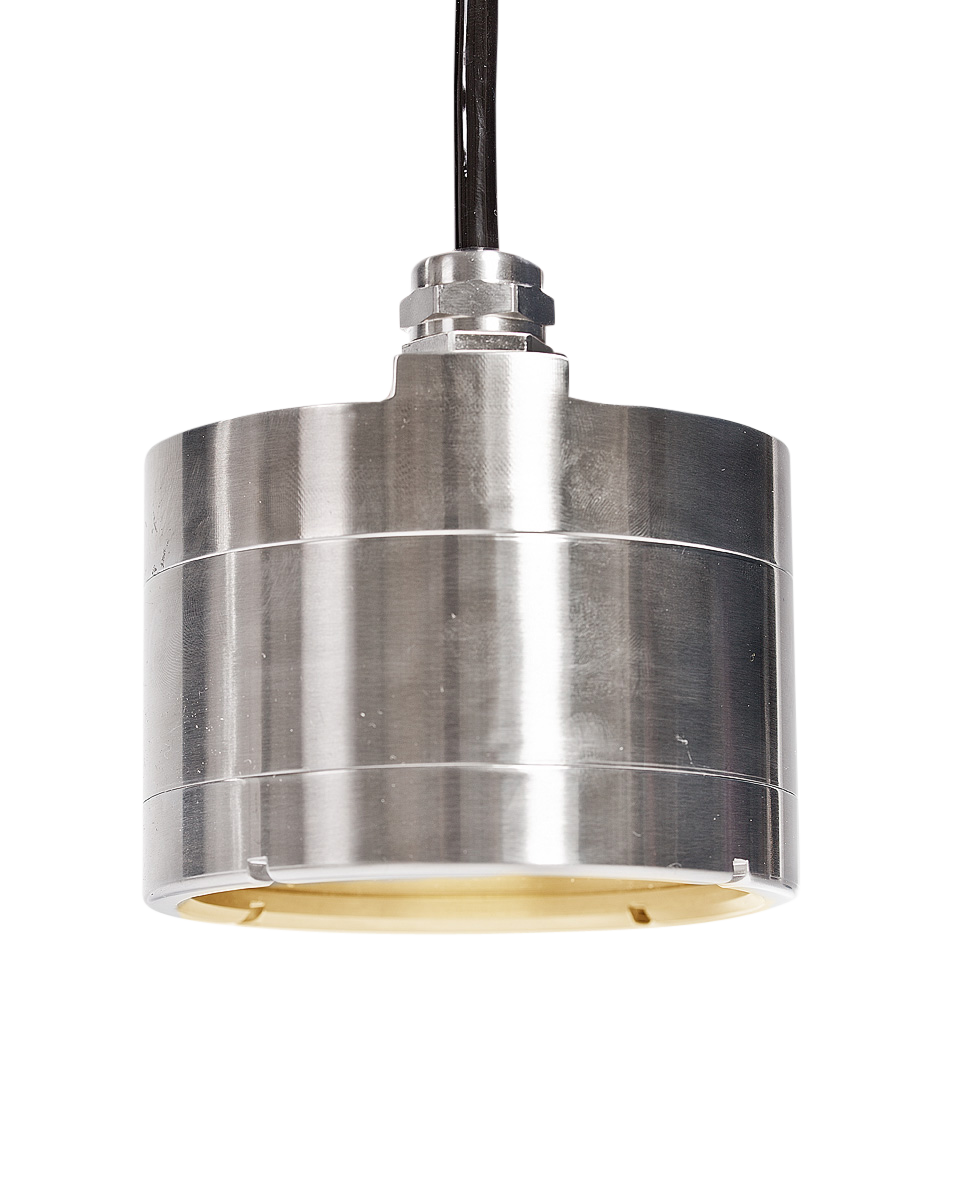

AHL-LIGHT 10
LED WORK LIGHT
- Weight
- 1.0 kg (2.3 lbs)
- Typical luminous flux
- 9 000 lumen
- Life time
- >50 000 h
- Radiation tolerance (total dose)
- 50 000 Gy (5 000 000 rad)
AHL-LIGHT 1
LED CAMERA LIGHT
- Weight
- 0.3 kg (0.7 lbs)
- Typical luminous flux
- 900 lumen
- Life time
- >50 000 h
- Radiation tolerance (total dose)
- 50 000 Gy (5 000 000 rad)

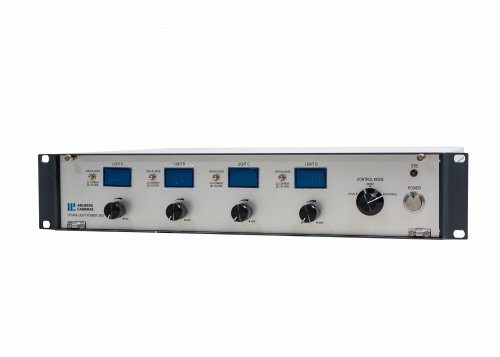

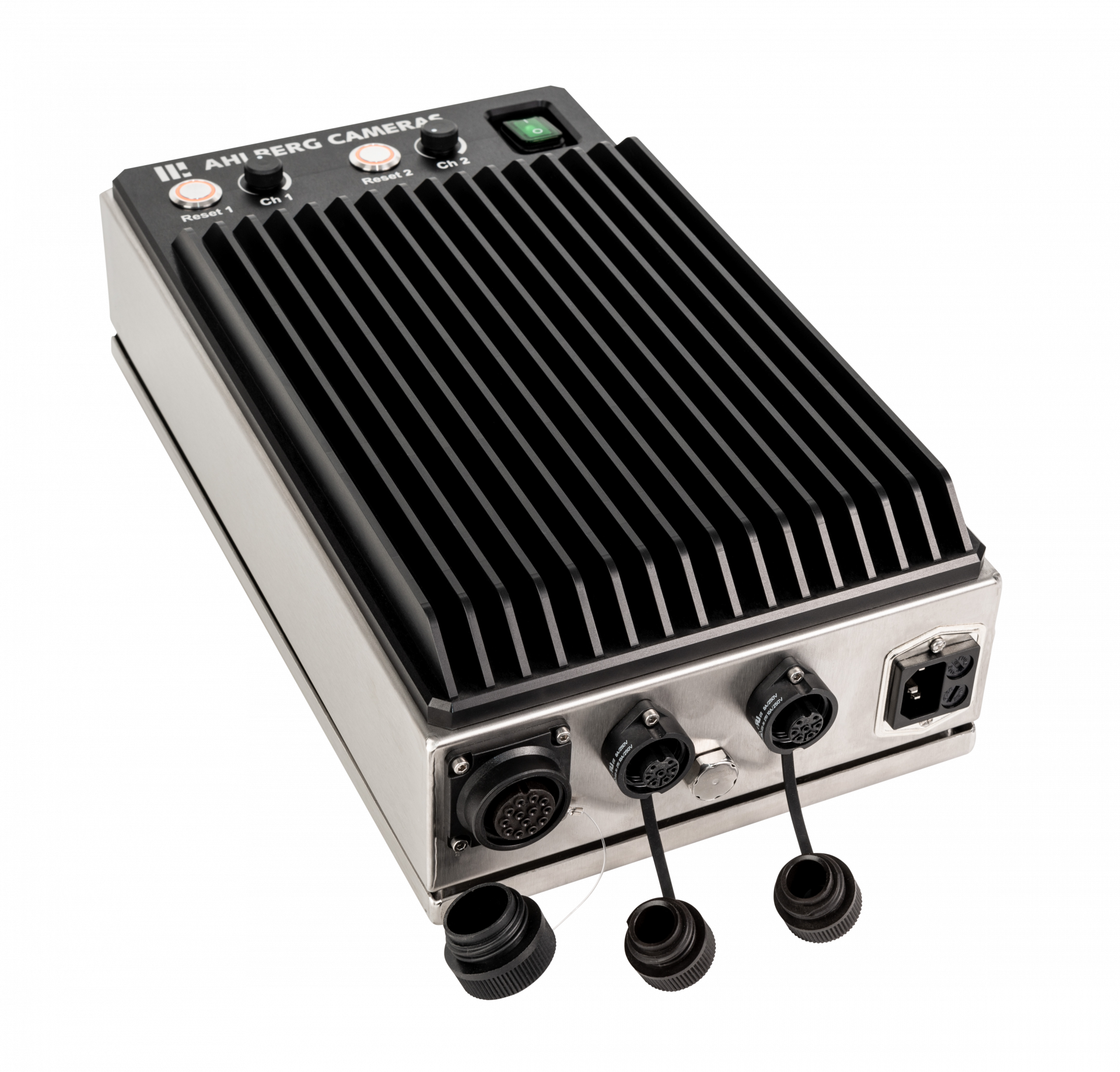

AHL-PS, AIR VERSION
POWER SUPPLY FOR AHL-LIGHT 70, 50, 35 AND 15
- Weight
- 9.7 kg (21.3 lbs)

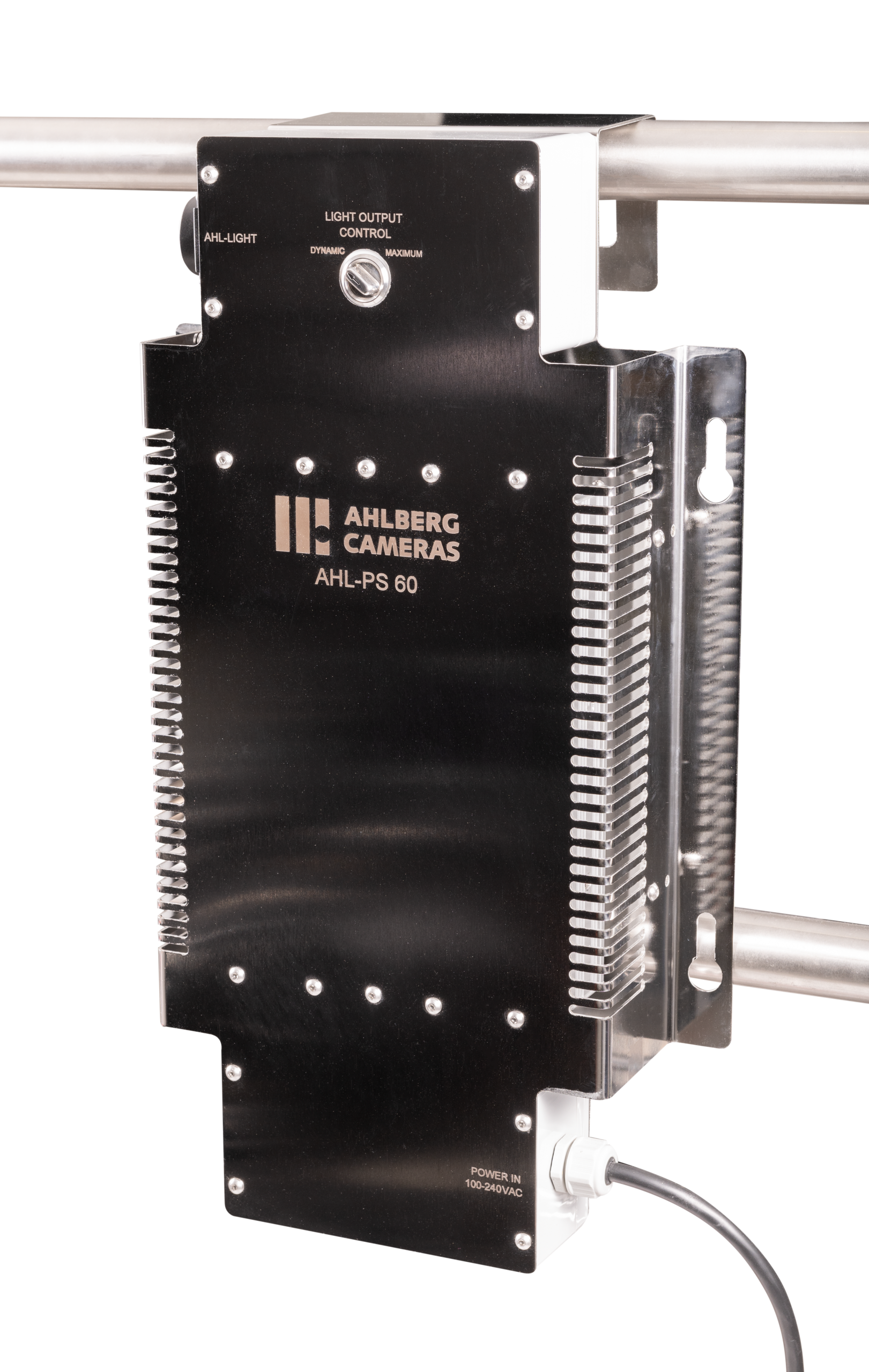

AHL-PS 60, AIR VERSION
ROBUST POWER SUPPLY FOR AHL-LIGHT 15, 20, 35, AND 70
- Weight
- 8.0 kg (17.6 lbs)

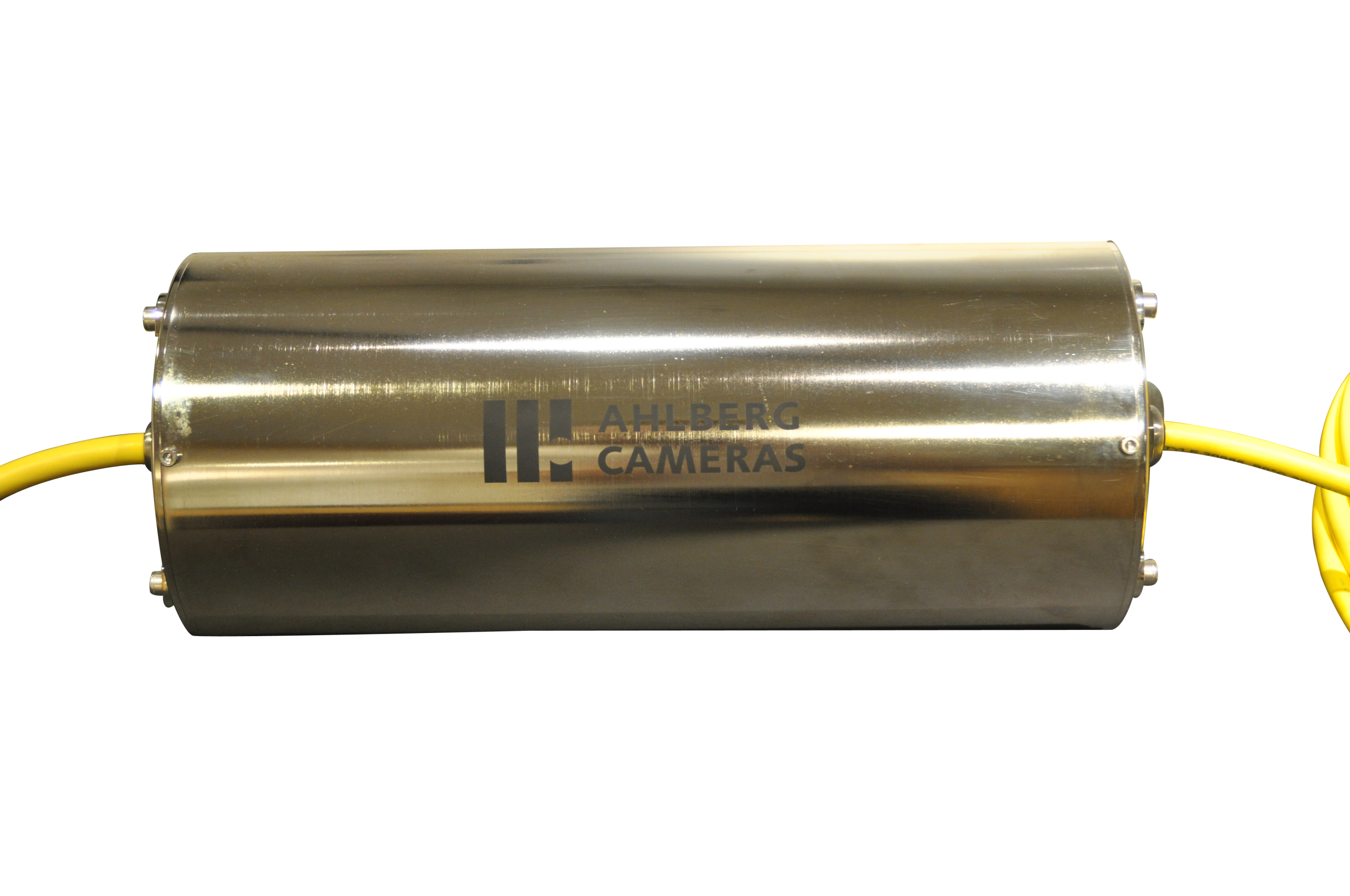

AHL-PS, UNDERWATER VERSION
POWER SUPPLY FOR AHL-LIGHT 70, 50, 35 AND 15
- Weight
- 12.0 kg (27 lbs)

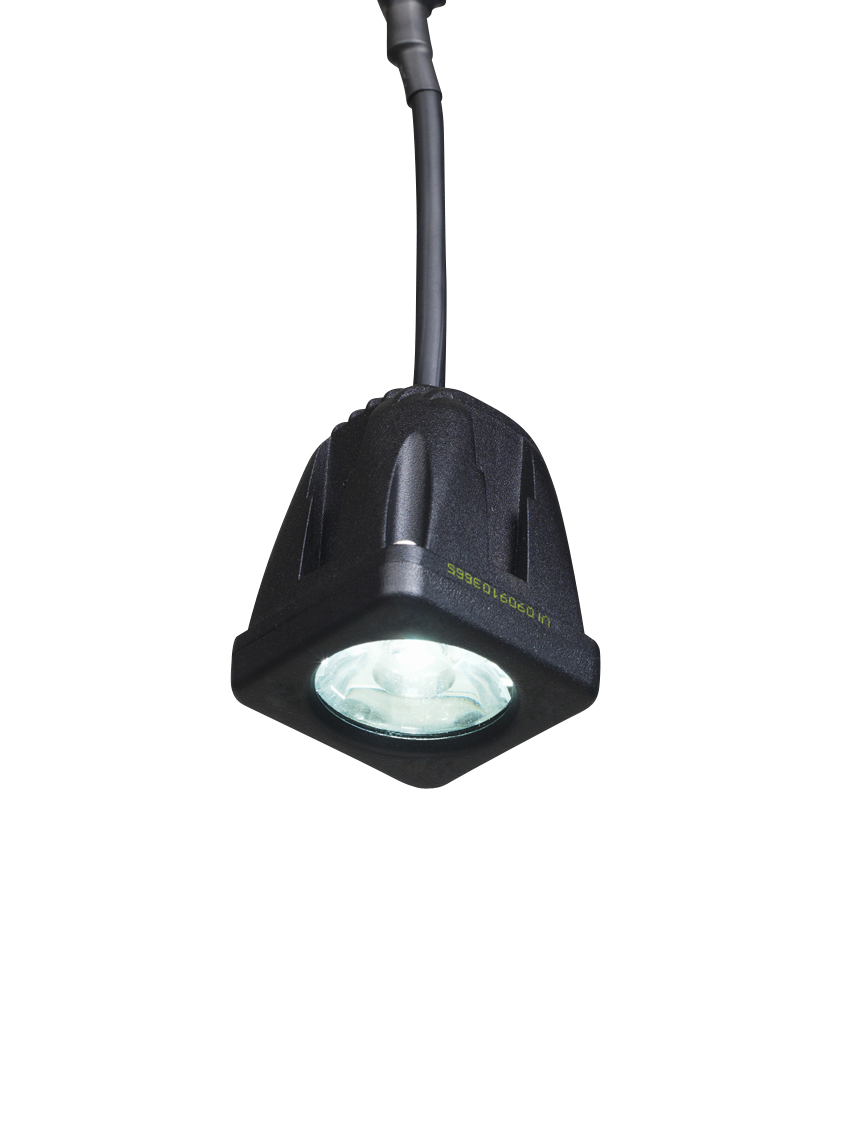

CCTV LED 5
POWERFUL CCTV LED LIGHT
- Weight
- 1.4 kg (3.1 lbs)
- Typical luminous flux
- 5 000 lumen
- Life time
- 50 000 h
- Radiation tolerance (total dose)
- 100 000 Gy (10 000 000 rad)
CCTV LED 1
COMPACT CCTV LED LIGHT
- Weight
- 0.3 kg (0.7 lbs)
- Typical luminous flux
- 1 000 lumen
- Life time
- 50 000 h
- Radiation tolerance (total dose)
- 2 000 Gy (200 000 rad)
Nuclear LED lighting is primarily used in reactor and fuel pools. These replace traditional halogen lights thanks to their massive light output. The LED technology also allows long-term operation and greatly reduced maintenance compared to ordinary nuclear lighting systems.
Nuclear underwater lights can also be used on manipulators, robots and fuel inspections systems. Nuclear LED lights are well suited to be mounted on equipment that is exposed to highly irradiating fuel due to their small size and low weight.
