CCTV62
COMPACT SD/HD CCTV CAMERA
- Weight
- 4.4 kg (9.11 lbs)
- Radiation tolerance (total dose)
- 5 000 Gy (500 000 rad)
- Radiation tolerance neutrons
- Low
- Maximum temperature
- 45°C (113°F)
Radiation Tolerant CCTV Cameras
Our radiation tolerant CCTV cameras are often used in spaces with high humidity where service possibilities are limited. That's why they are designed to endure long operating cycles.

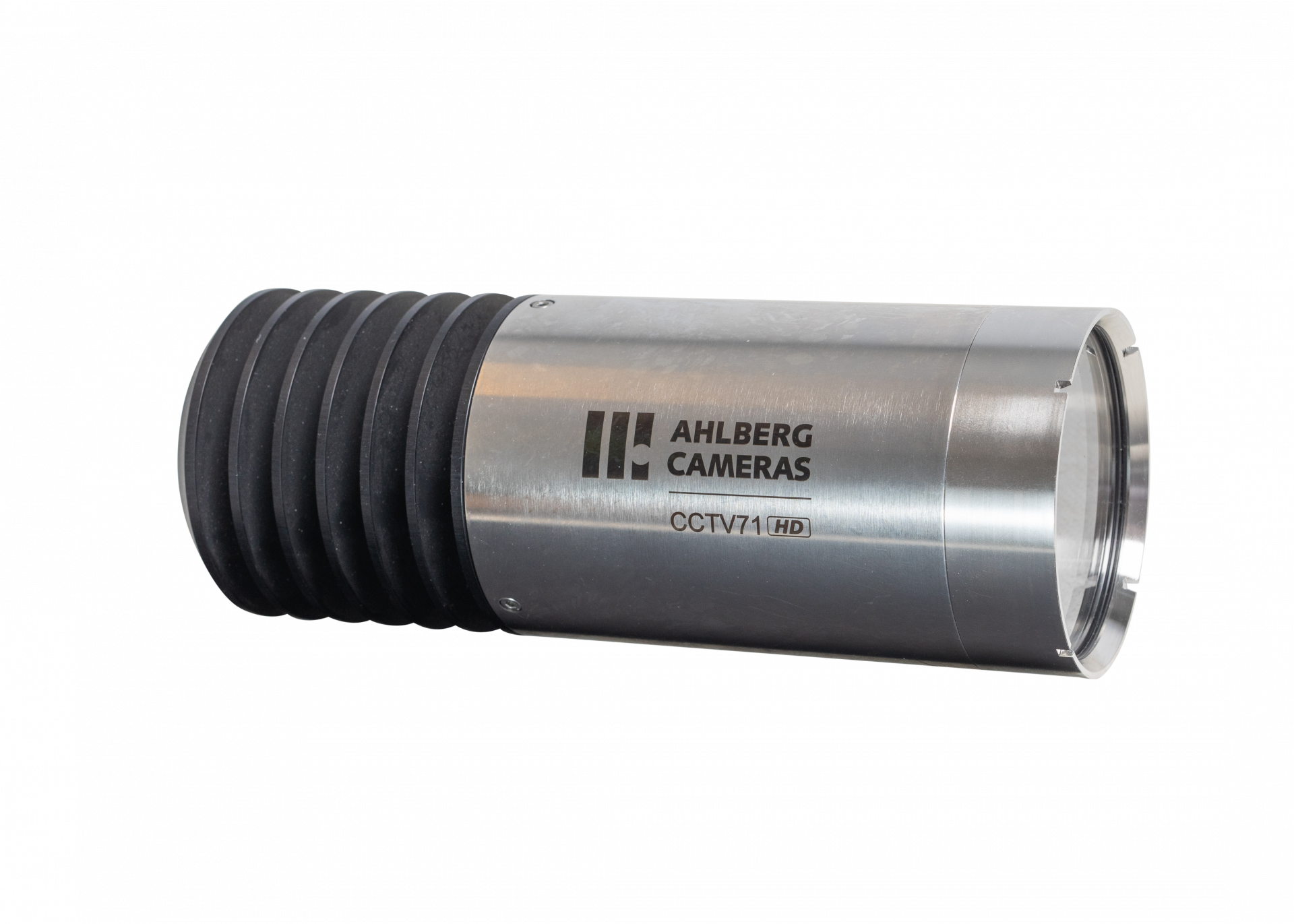

CCTV71
SD/HD CCTV CAMERA
- Weight
- 3.1 kg (6.8 lbs)
- Radiation tolerance (total dose)
- 1 200 Gy (120 000 rad)
- Radiation tolerance neutrons
- Low
- Maximum temperature
- 45°C (113°F)

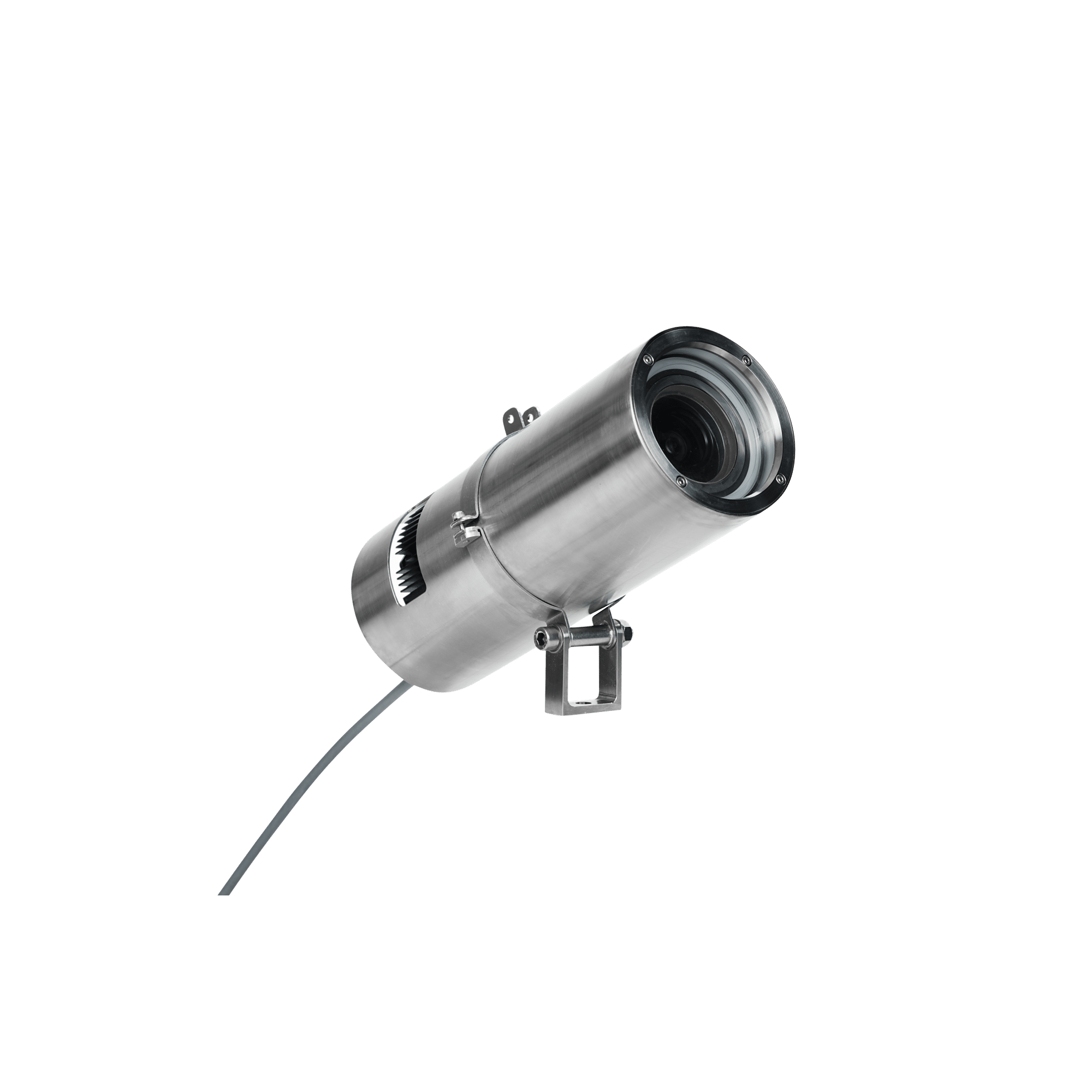

CCTV129
TEMPERATURE AND NEUTRON TOLERANT CCTV CAMERA
- Weight
- 13.5 kg (29.7 lbs)
- Radiation tolerance (total dose)
- 5 000 Gy (500 000 rad)
- Radiation tolerance neutrons
- Medium
- Maximum temperature
- 55°C (131°F)
CCTV90
HIGH TEMPERATURE AND NEUTRON TOLERANT CCTV CAMERA
- Weight
- 33.2 kg (73.2 lbs)
- Radiation tolerance (total dose)
- 10 000 Gy (1 000 000 rad)
- Radiation tolerance neutrons
- High
- Maximum temperature
- 60°C (140°F), 90°C (194°F) for 5 hours
CCTV95
HIGH TEMPERATURE AND NEUTRON TOLERANT CCTV CAMERA
- Weight
- 41.1 kg (90.6 lbs)
- Radiation tolerance (total dose)
- 18 000 Gy (1 800 000 rad)
- Radiation tolerance neutrons
- Very high
- Maximum temperature
- 60°C (140°F), 90°C (194°F) for 5 hours
CCTV98
GAMMA AND NEUTRON TOLERANT CCTV CAMERA
- Weight
- 44.5 kg (98.1 lbs)
- Radiation tolerance (total dose)
- 20 000 Gy (2 000 000 rad)
- Radiation tolerance neutrons
- Very high
- Maximum temperature
- 45°C (113°F)
HI-RAD XS
EXTRA SMALL HD PTZ CAMERA
- Weight
- 3.8 kg (8.4 lbs)
- Radiation tolerance (total dose)
- 1 200 Gy (120 000 rad)
- Maximum temperature
- 50°C (short-term up to 70°C) 122°F (short-term up to 158°F)
N35HR
CCTV MONOCHROME TUBE CAMERA
- Weight
- 1.0 kg with fixed focus, 1.2 kg with zoom lens
- Radiation tolerance (total dose)
- 1 600 000 Gy (160 000 000 rad)
- Radiation tolerance neutrons
- Very high
- Maximum temperature
- 50°C, short-term up to 60°C
N66HR
CCTV MONOCHROME TUBE CAMERA
- Weight
- 1 kg, 2 kg with zoom lens (2.2 lbs, 4.4 lbs)
- Radiation tolerance (total dose)
- 700 000 Gy (70 000 000 rad)
- Radiation tolerance neutrons
- Very high
- Maximum temperature
- 50°C (122°F)

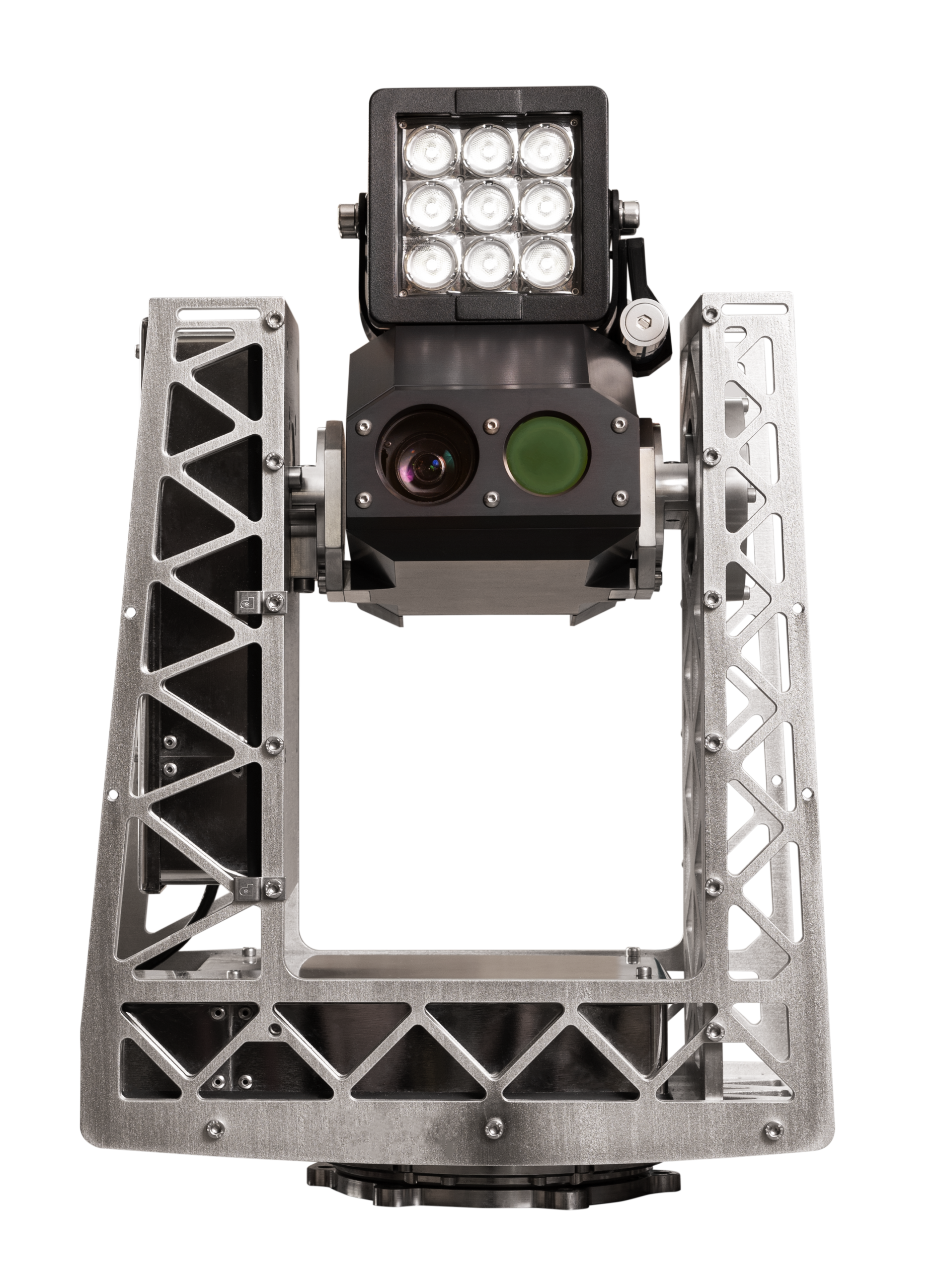

CCTV40TH
Combined thermal and visual camera
- Weight
- 5,1 kg
- Radiation tolerance (total dose)
- 200 Gy
MINI-RAD F30 HD
HIGH RADIATION TOLERANT MINI HD CAMERA WITH MOTORIZED FOCUS
- Weight
- 400g (0.9 lbs), 500g (1.2 lbs) with mirror
- Radiation tolerance (total dose)
- 49 000 Gy (4 900 000 rad)
- Maximum temperature
- 50°C, 122°F
MINI-RAD F30 HD M
HIGH RADIATION-TOLERANT MINI HD CAMERA WITH MOTORIZED FOCUS AND MIRROR
- Weight
- 500 g (1.2 lbs)
- Radiation tolerance (total dose)
- 49 000 Gy (4 900 000 rad)
- Maximum temperature
- 50°C, 122°F
MINI-RAD F30 HD SM
VERY HIGH RADIATION-TOLERANT HD CAMERA WITH MOTORIZED FOCUS AND MIRROR
- Weight
- 5.5 kg (12.1 lbs)
- Radiation tolerance (total dose)
- 100 000 Gy (10 000 000 rad)
- Maximum temperature
- 50°C, 122°F
We design and deliver complete radiation tolerant CCTV systems for surveillance at nuclear power plants, such as BWR, PWR, VVER, RBMK and CANDU-reactors. The systems include everything from cameras, lights and cables to data infrastructure and management systems. Nuclear plant operators use them to survey fuel pools, containments and crucial equipment.
Our systems are also used by nuclear waste facilities when handling and cleaning up waste. Hot cells is another area where they are used.
