CCU845

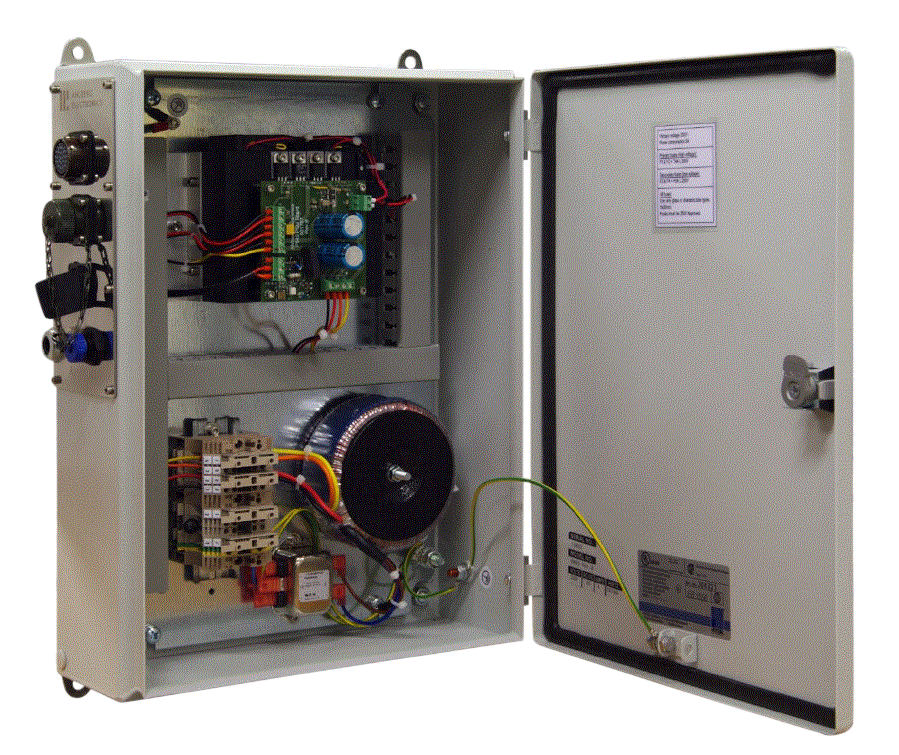

CCTV CAMERA POWER BOX
The CCU845 is a CCTV power box used to power a CCTV camera and light. In contrast to the CCU890, the CCU845 is used when no settings such as pan, tilt, zoom, light on/off are to be made during operation. The power box comes with a preset box for initial settings.
Applications
- Supplies power for a camera and lighting
- Initial settings of zoom and light can be made with a preset box
Benefits
- Streamlined power box used when little operability is required
Specifications
- Dimensions (HxWxD)
- 120 x 400 x 300 mm (4.72"x15.76"x11.82")
- Weight
- 10.1 kg (22.3 lbs)
- Housing material
- Grey-white Powder coated (painted) steel
- Operating temperature max
- 40°C (104°F)
- Protection class
- IP65
- Power supply
- 110, 120, 220, 230 or 240 VAC / 50-60 Hz
- External lighting output
- 1 channel
- Video outputs
- Composite SD
